Trek Fuel MX 9 X0 AXS Gen 7
$5,999.99
Details
Fuel MX 9 X0 AXS is a playful trail bike made for hunting down side hits and chasing chaos. Its Alpha NEXT Platinum aluminum frame it paired with a Fox Factory suspension package (150mm rear, 160mm front) and MX wheels for a ride that's flickable and zippy. It comes ready to rip with a wireless SRAM X0 Eagle AXS transmission that keeps shifts smooth under load and SRAM Maven Silver 4-piston brakes for massive stopping power.
Wheel Size:
- Size Small: 29-inch front / 27.5-inch rear
- Sizes Medium – X-Large: 29-inch

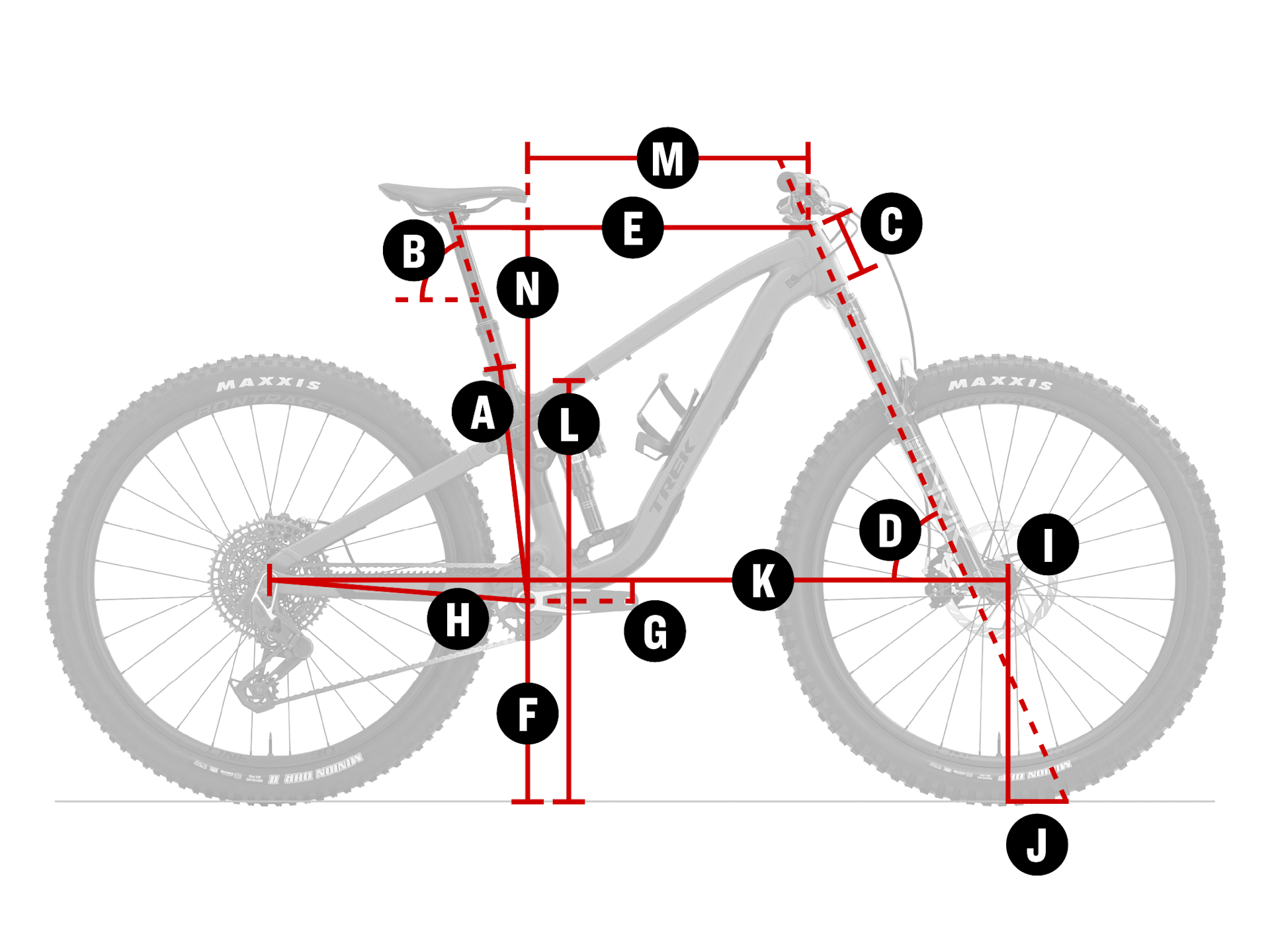

| Frame size number | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Frame size letter | S | M | L | XL |
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| A — Seat tube | 37 | 40 | 42 | 45.5 |
| B — Seat tube angle | 72.3° | 72.3° | 72.3° | 72.3° |
| Effective seat tube angle | 78.3° | 77.5° | 77.0° | 76.6° |
| C — Head tube length | 9.5 | 11 | 12.5 | 14 |
| D — Head angle | 64.2° | 64.2° | 64.2° | 64.2° |
| E — Effective top tube | 54.9 | 58.4 | 61.8 | 65.2 |
| F — Bottom bracket height | 34.3 | 34.3 | 34.3 | 34.3 |
| G — Bottom bracket drop | 3.1 | 3.1 | 3.1 | 3.1 |
| H — Chainstay length | 43.4 | 43.4 | 43.9 | 44.4 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 13.2 | 13.2 | 13.2 | 13.2 |
| K — Wheelbase | 119.1 | 122.8 | 126.4 | 130.1 |
| L — Standover | 75.2 | 74.9 | 75.2 | 76.3 |
| M — Frame reach | 42.6 | 45.6 | 48.2 | 50.7 |
| N — Frame stack | 61.3 | 62.7 | 64.1 | 65.4 |
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
Specs
| Frame | Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
|---|---|
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel |
| Rear Shock | Fox Factory Float X, 205mm x 60mm |
| Wheels |
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5'' |
| Tires |
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Brakes | SRAM Maven Silver 4-piston hydraulic disc |
| Crankset | SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Shifters | SRAM AXS pod |
| Cassette/Freewheel | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Rotors | SRAM HS2, 6-bolt, 180mm |
| Handlebars | Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Pedals | Sold separate |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Lithium Grey/Trek Black Splatter / Medium / 29-inch | 197216278375 | 5340419 |
| Lithium Grey/Trek Black Splatter / Large / 29-inch | 197216278382 | 5340420 |
| Lithium Grey/Trek Black Splatter / X-Large / 29-inch | 197216278399 | 5340421 |
| Lithium Grey/Trek Black Splatter / Small / 29-inch front / 27.5-inch rear | 197216278368 | 5340418 |
| Matte Juniper/Blue Sage Splatter / Medium / 29-inch | 197216278450 | 5340427 |
| Matte Juniper/Blue Sage Splatter / Large / 29-inch | 197216278467 | 5340428 |
| Matte Juniper/Blue Sage Splatter / X-Large / 29-inch | 197216278474 | 5340429 |
| Matte Juniper/Blue Sage Splatter / Small / 29-inch front / 27.5-inch rear | 197216278443 | 5340426 |
| Matte Sedona Red/Pennyflake Splatter / Medium / 29-inch | 197216278412 | 5340423 |
| Matte Sedona Red/Pennyflake Splatter / Large / 29-inch | 197216278429 | 5340424 |
| Matte Sedona Red/Pennyflake Splatter / X-Large / 29-inch | 197216278436 | 5340425 |
| Matte Sedona Red/Pennyflake Splatter / Small / 29-inch front / 27.5-inch rear | 197216278405 | 5340422 |
